Specification

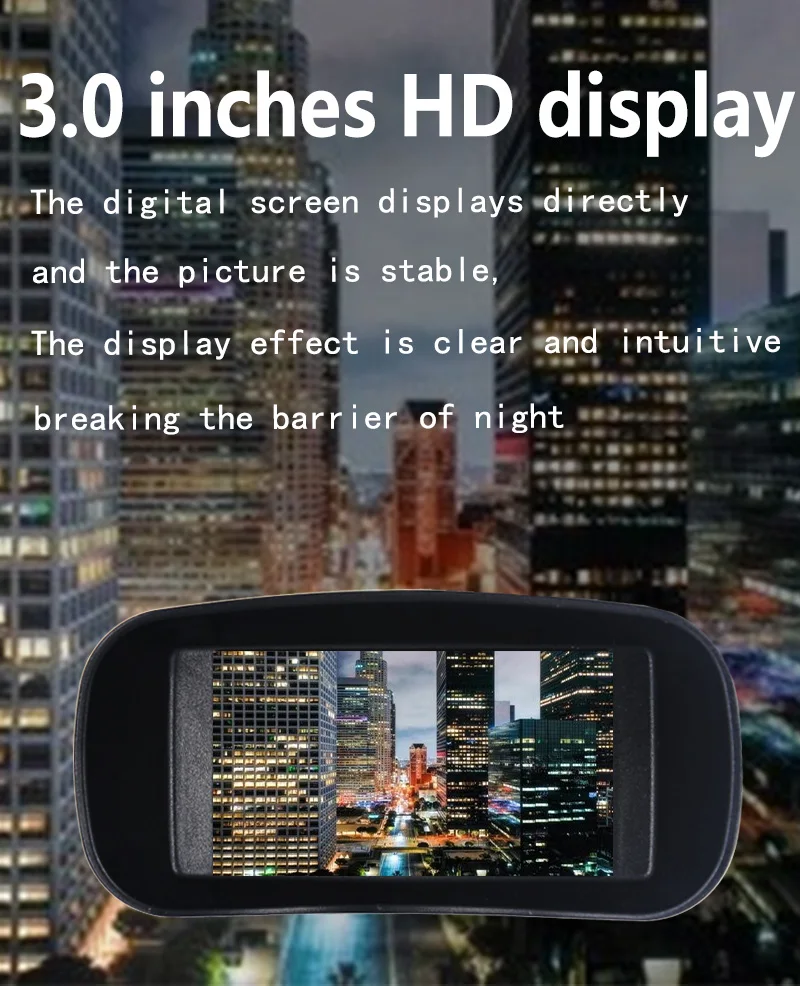

Video Output
|
320×240 resolution TFT LCD
|
OSD menu display
|
|
CVBS always output with VGA resolution
|
|
Imager |
Wide Dynamic Range High-sensitivity CMOS Sensor
|
Size 1/3”
|
|
Resolution 640X480
|
|
IR LED
|
3W Infared LED with 850nm
|
Micro SD Card
|
Support SDHC 4GB~32GB SD Card
|

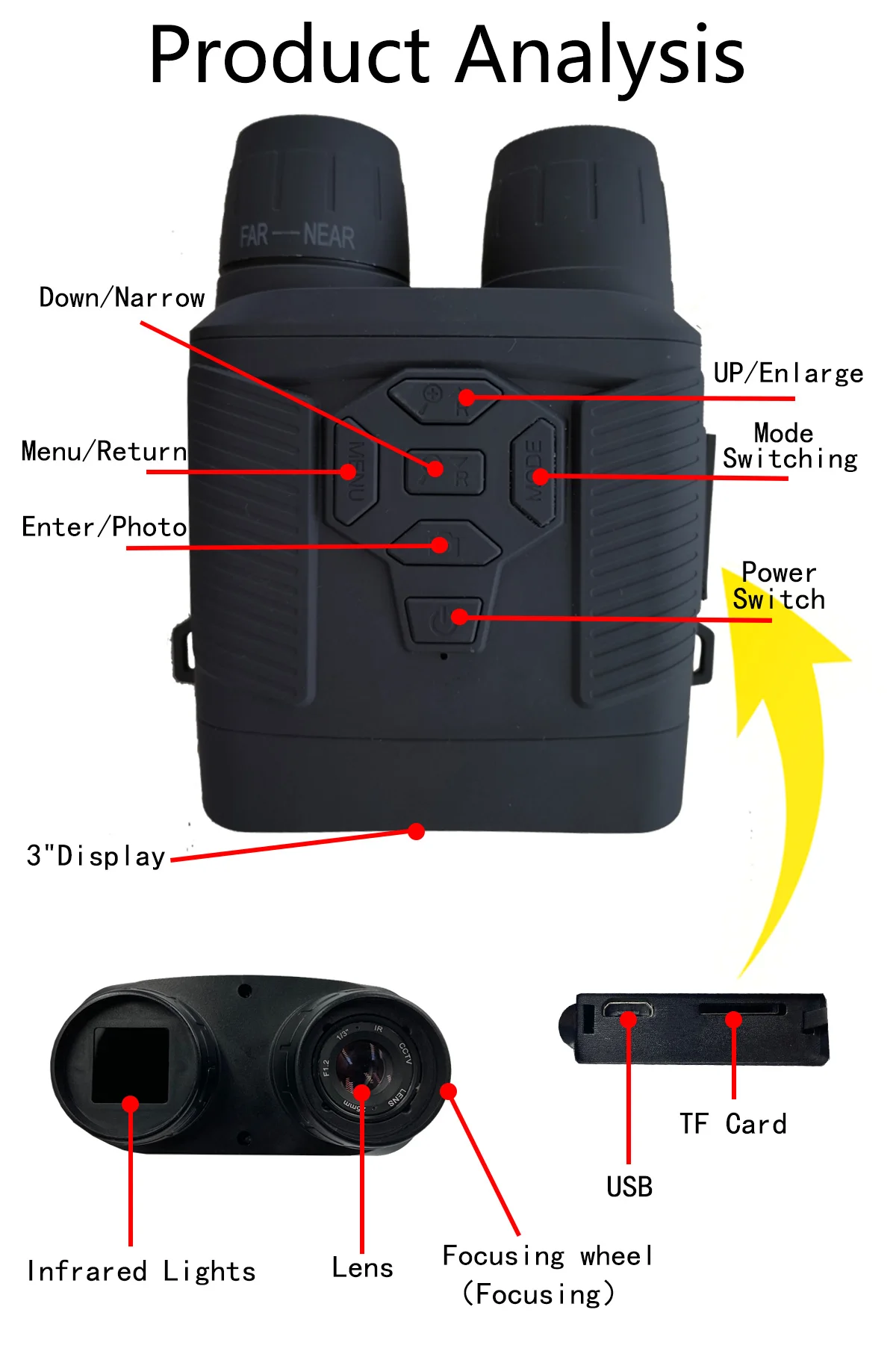

Hardware Buttons |
Power on/off
|
Snap
|
|
Mode selection
|
|
Zoom
|
|
IR switch
|
|
Operation |
Preview
|
Record JPEG file in SD storage
|
|
Capture JPEG file in SD storage
|
|
Playback media file from SD storage
|
|
Power |
External power supply – DC 5V/1A
|
built in 4000mAh LI-battery
|
|
Battery life: 6 hours working time with IR off
|
|
Battery low warning
|
|
System |
4 modes (Capture, Video, Playback)
|
Single frame Image Capture
|
|
Video image Record
|
|
Playback image
|
|
Delete image
|
|
5 level IR switch
|
|
SD card format
|
|
Power save (Off/1 min/ 3min/50 min)
|
|
Language: English /Trad. Chinese /Simp. Chinese /Japanese /
French /Deutsch /Korean /Italian /Portuguese /Russian / Spanish / Arabic |
|
System Rest
|
|
Light Freq. 50/60HZ
|
|
Date Input
|
|
Version
|
|
Size/Weight
|
120*150*60CM/340G
|
Packing & Delivery

night vision *1
user manual *1
USB cable *1
